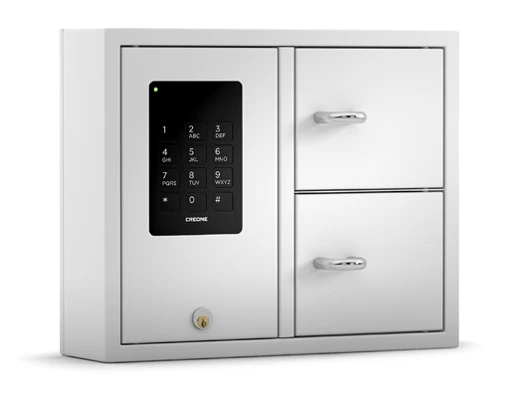

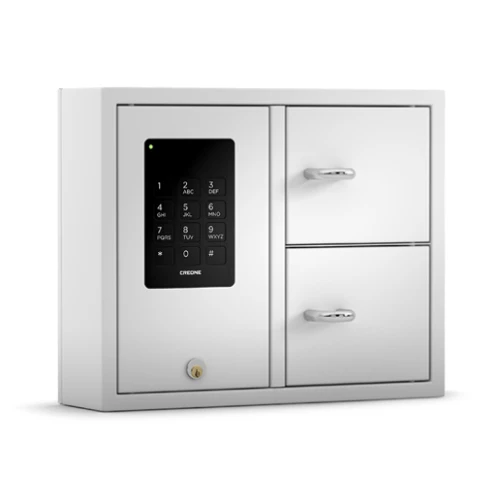

Creone KeyBox Basic 9002B High Security Key Cabinet

  • 1.5mm steel construction
  • Powder coated finish
  • Up to 500 user codes per cabinet
  • 256B Memory
  • Expandable to up to 15 cabinets in one system
  • Available in multiple variations
  • Electromagnetic 12V locking
  • Alarm feature
  • Battery backup available
  • Magnetic time settings for compartments
  • Voltage, 100/230V 50-60hz
  • Max Power Consumption: 35W/0.15A
  • Key Safe
  • Electronic lock
  • Storage for 16 keys
  • Suitable for wall fixing
  • Colour: White
  • Made from Steel
  • External Dimensions: 280 x 345 x 94mm (HxWxD)
  • Weight: 6kg
Product reference code: 4187
Request installation quote

Enquire Now


Other KeyBox Basic Range
Model External Dimensions Internal Dimensions Volume Weight Price
9001B 280 x 345 x 94mm (HxWxD) 0 x 0 x 0mm (HxWxD) - 6kg Call for Price
9002B 280 x 345 x 94mm (HxWxD) 0 x 0 x 0mm (HxWxD) - 6kg Call for Price
9006B 280 x 345 x 94mm (HxWxD) 0 x 0 x 0mm (HxWxD) - 6kg Call for Price
9006B Stainless 280 x 345 x 94mm (HxWxD) 0 x 0 x 0mm (HxWxD) - 6kg Call for Price
9500B 730 x 746 x 140mm (HxWxD) 0 x 0 x 0mm (HxWxD) - 28kg Call for Price

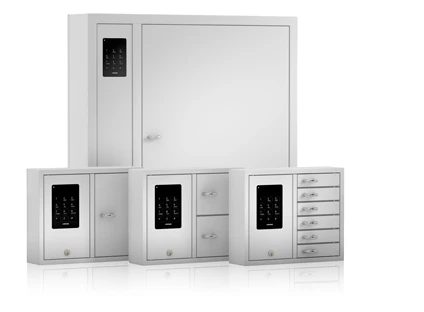

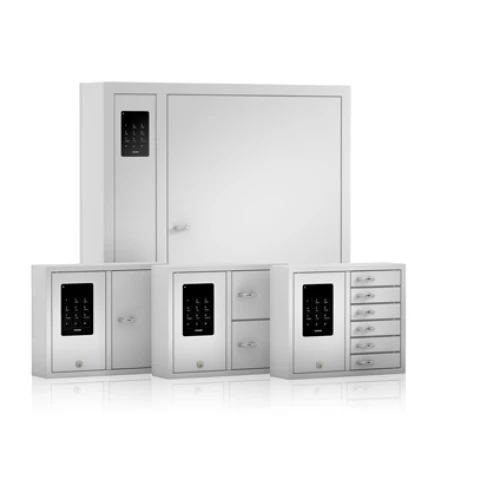

The KeyBox Basic series from Creone is a cut above the rest when it comes to flexible and intelligent key storage. The Basic series, based on simplicity and safety, is equipped with a keypad for entering codes and programming, allowing you to unlock the door, or program which users have access to which keys, utilising either small cabinets or Creone’s smart locking keystrips. The KeyBox Basic series is also fitted with an alarm in the event of unauthorised opening of the main or service doors.

All cabinets in the KeyBox Basic range can handle up to 500 users (codes with 1-8 characters). The cabinets are available in various models, offering a wide variety of options to suit your needs. The cabinets are available with 16 (9002B), 29 (9001B), or 216(9500B) key hooks or, alternatively, with 6 small seperate compartments (9006B).

All units in this range can be expanded up to 15 cabinets in any combination. This allows users to utilise up to 96 compartments in just one system – all controlled with just one keypad.

Please note: The KeyBox Basic range is NOT compatible with KeyWin Light PC Software

If you have any queries regarding the Creone KeyBox Basic series, please do not hesitate to contact us.
